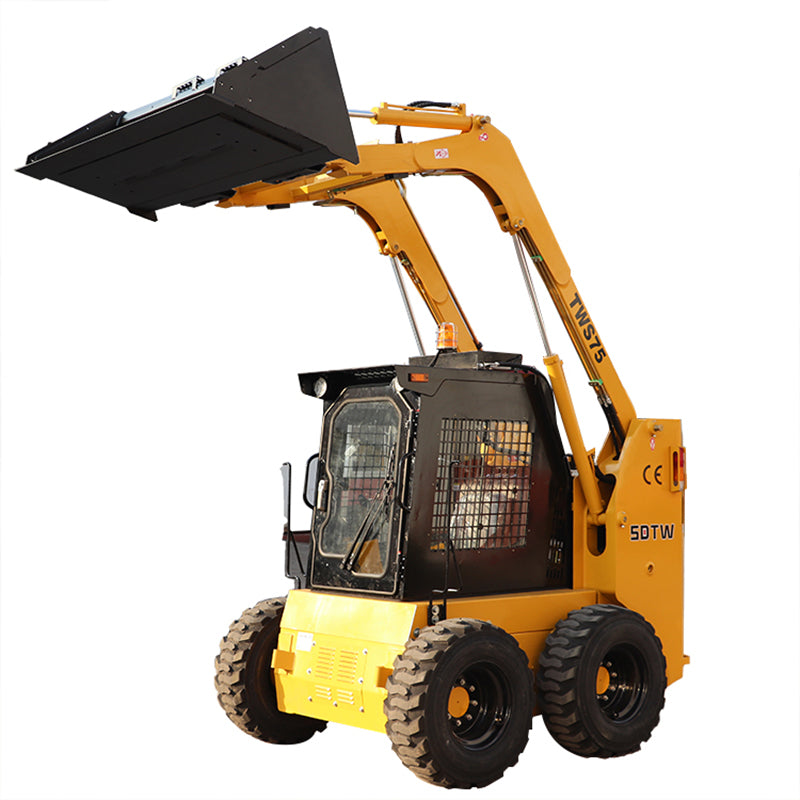

Wheel Side Loader TWS75 3.5T
EFFICIENT WORK WITH LOW EXPENSES
BEARING ENGINES
HIGH-QUALITY PARTS
SUITABLE FOR DEMANDING WORK ENVIRONMENTS
MODERN CABIN FOR COMFORT AND SAFETY
TWS75 – a reliable and efficient wheeled skid steer loader, featuring a lifting capacity of 1050 kg and a powerful XINCHAI or Yanmar diesel engine. This model is well suited for industrial, agricultural, and construction tasks – wherever stability, power, and maneuverability are needed. Its 3800 kg operating weight and convenient hydraulic joystick control system ensure smooth operation even under challenging conditions.
Main Features
-
1.05 ton lifting capacity – a versatile choice for medium-intensity work
-
55 kW XINCHAI 498T or Yanmar engine – a reliable and economical solution
-
Wide 0.5 m³ bucket capacity – efficient loading and transport
-
Hydraulic joystick control system – easy and precise handling
-
Rubber tracks 320x84 mm – excellent traction and protection for soft surfaces
-
Height to pin – 2900 mm – suitable for lifting larger loads
Technical Specifications – TWS75
| Parameter | Value |
|---|---|
| Operating weight | 3500 kg |
| Dimensions (L x W x H) | 3500 x 1782 x 2150 mm |
| Width with bucket | 1830 mm |
| Track width | 320 mm |
| Track length | 1500 mm |
| Ground clearance | 200 mm |
Performance Indicators
| Parameter | Value |
|---|---|
| Lifting capacity | 1050 kg |
| Overturn load | 2100 kg |
| Bucket capacity | 0.5 m³ |
| Height to pin | 2900 mm |
| Maximum working height | 3480 mm |
| Travel speed | 12–18 km/h |
| Hydraulic pump flow | 75 L/min |
| Fuel tank capacity | 80 L |
Engine and Starting
| Parameter | Value |
|---|---|
| Engine model | XINCHAI 498T / Yanmar |
| Power | 55 kW / 2600 rpm |
| Type | 4-cylinder, water-cooled, 4-stroke, diesel |
| Displacement | 3.17 L |
