Crawler Side-Shift Loader TS50 2.8T
EFFICIENT WORK WITH LOW EXPENSES
BEARING ENGINES
HIGH-QUALITY PARTS
SUITABLE FOR DEMANDING WORK ENVIRONMENTS
MODERN CABIN FOR COMFORT AND SAFETY

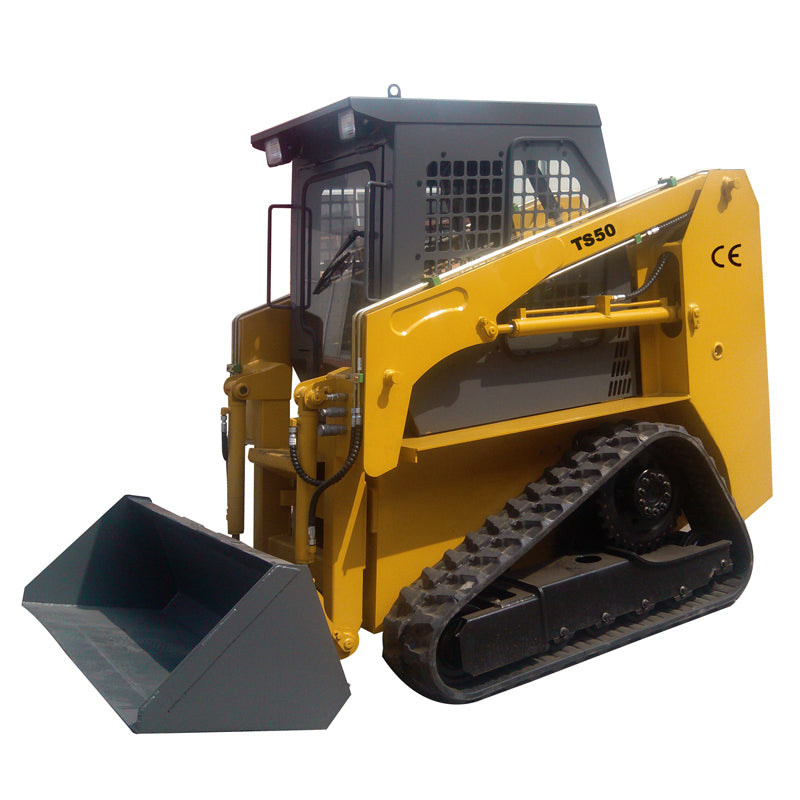

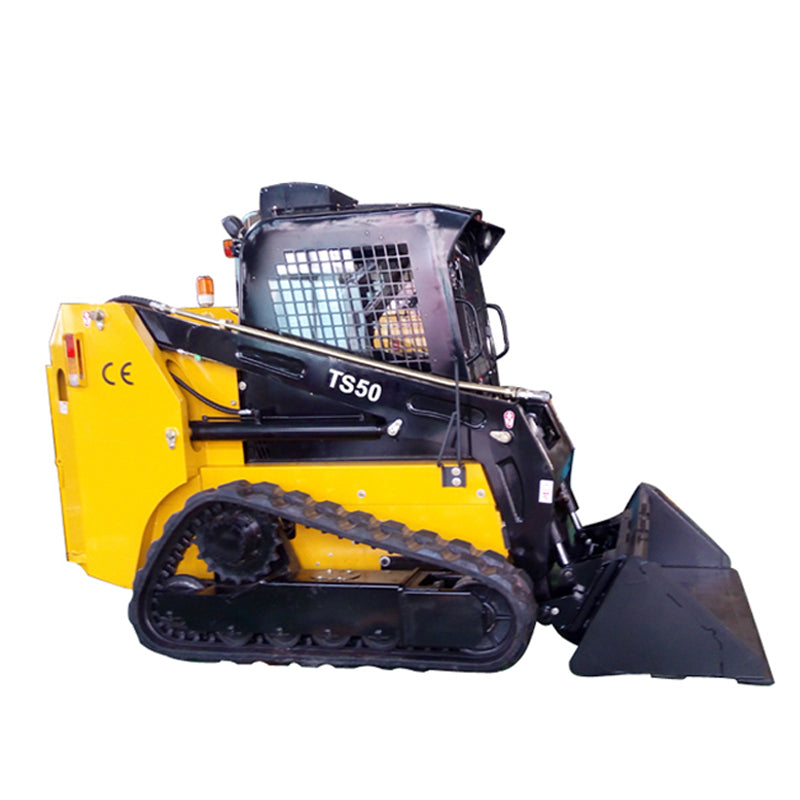

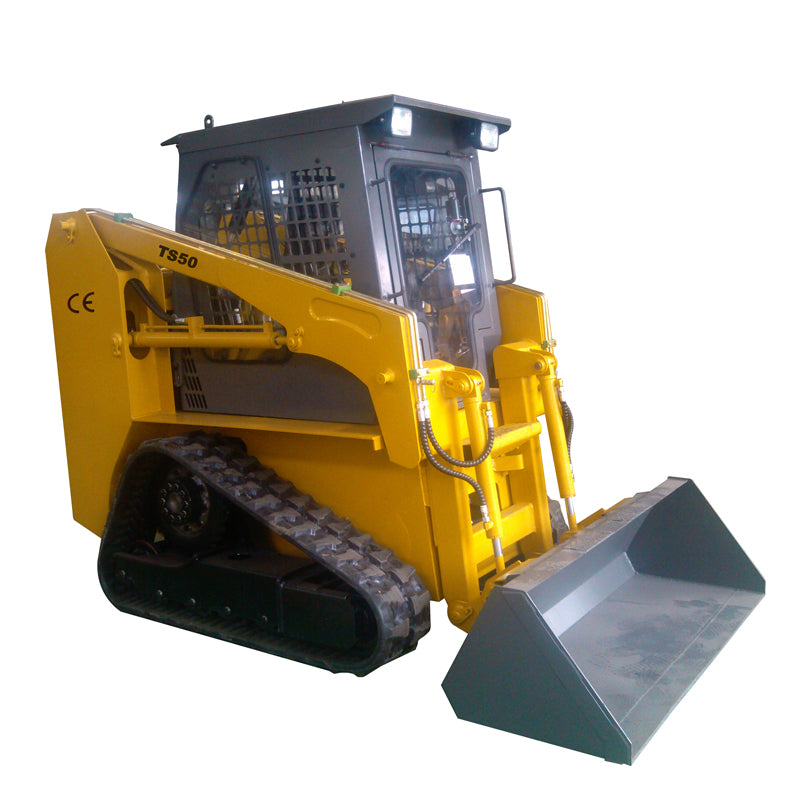

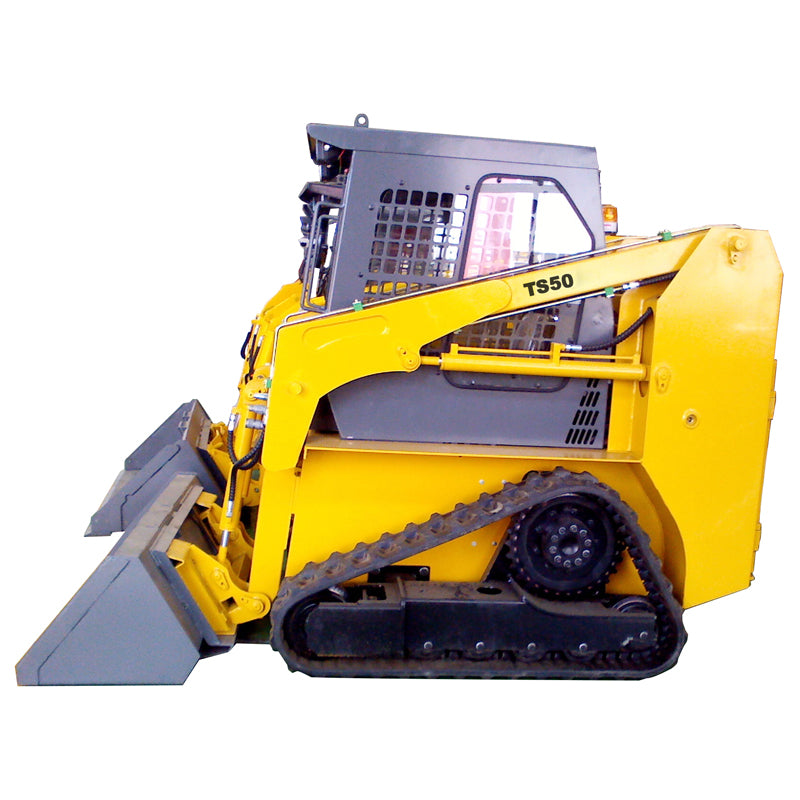

TS50 – a compact crawler loader with lateral sliding, designed for various tasks requiring maneuverability. With a lifting capacity of 600 kg and a 48 HP diesel engine, the TS50 is a reliable choice for both small construction, municipal, and landscaping works. Thanks to its sturdy crawler base, hydraulic joystick control system, and versatile attachments, this model stands out for comfort and work efficiency.
Main Features
-
600 kg lifting capacity – an excellent choice for medium-sized tasks
-
2800 kg operating weight – ensured stability and reliability
-
48 HP YND492 engine – sufficient power for various tasks
-
Hydraulic joystick control system – intuitive and comfortable operation
-
Open or closed cabin type – adaptable according to working conditions
-
Wide range of attachments – from sweeping to drilling or aerating
Technical Specifications – TS50
| Parameter | Value |
|---|---|
| Operating weight | 2800 kg |
| Dimensions (L x W x H) | 2950 x 1500 x 2050 mm |
| Width with bucket | 1500 mm |
| Track width | 320 mm |
| Track length | 1240 mm |
| Ground clearance | 180 mm |
Working Indicators
| Parameter | Value |
|---|---|
| Lifting capacity | 600 kg |
| Bucket capacity | 0.3 m³ |
| Height to pin | 2770 mm |
| Travel speed | 8 km/h |
| Hydraulic pump flow | 40 L/min |
| Fuel tank capacity | 50 L |
Engine and Starting
| Parameter | Value |
|---|---|
| Engine model | YND492 |
| Power | 48 HP / 2500 rpm |
| Type | 4-cylinder, water-cooled, 4-stroke, diesel |
| Displacement | 2.2 L |
