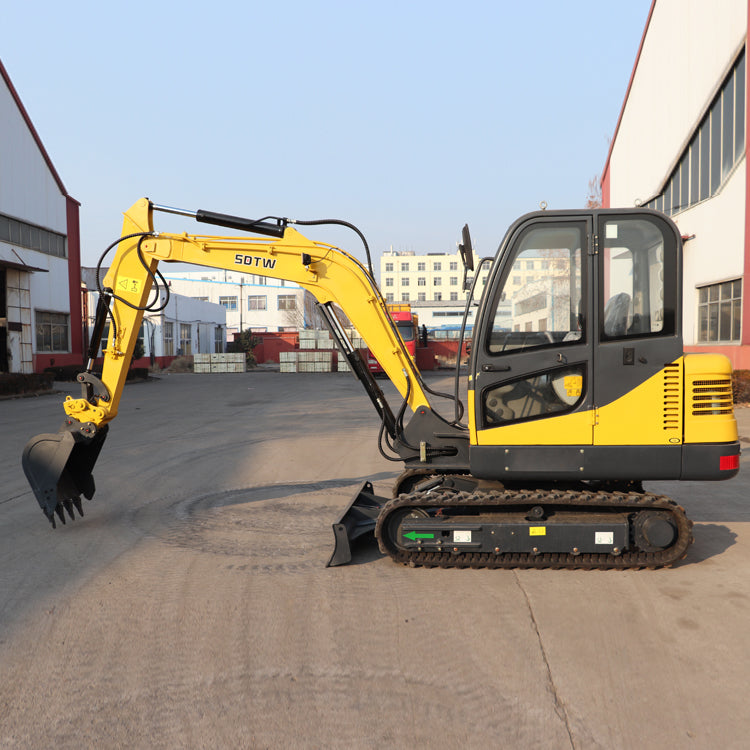

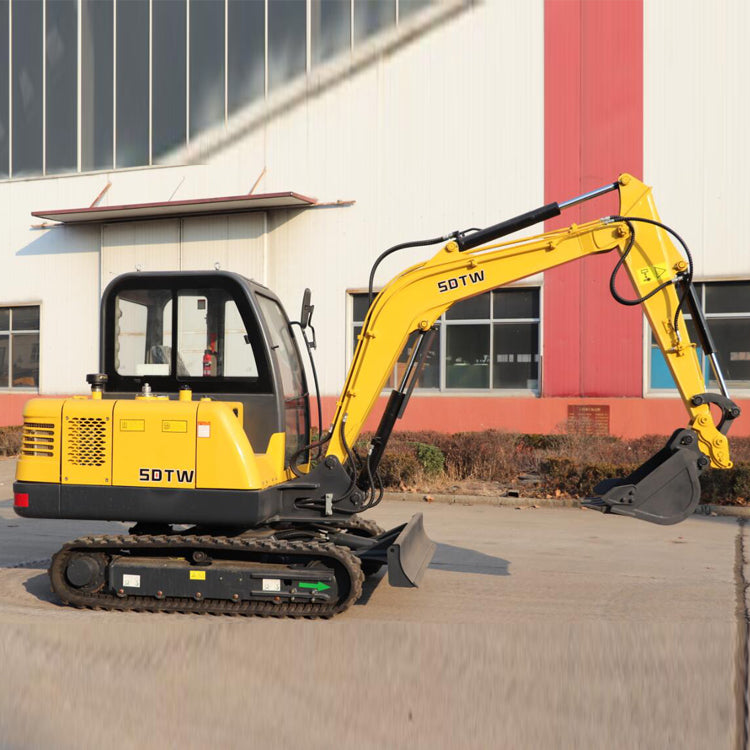

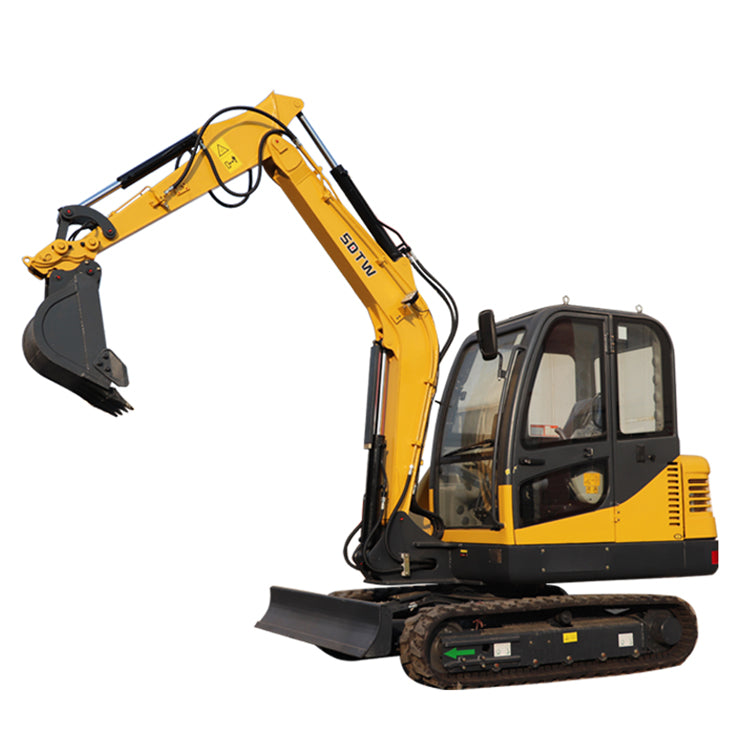

Crawler Excavator TW45 4.2T
EFFICIENT WORK WITH LOW EXPENSES
BEARING ENGINES
HIGH-QUALITY PARTS
SUITABLE FOR DEMANDING WORK ENVIRONMENTS
MODERN CABIN FOR COMFORT AND SAFETY
TW45 4.2T – a larger class crawler excavator, ideal for intensive construction, earthmoving, and municipal work. Powered by a strong Xincha or Yanmar engine, this model stands out not only for its power but also for efficiency, durability, and high operator comfort.
Main features
-
Powerful 36.8 kW or 25.2 kW 4-cylinder water-cooled engine
-
0.17 m³ capacity bucket – suitable for larger digging tasks
-
High-performance hydraulic system (22 Mpa)
-
High digging depth and height – versatile for various projects
-
Robust chassis with wide tracks (350 mm)
Technical Specifications – TW45 4.2T
| Parameter | Value |
|---|---|
| Model | TW45 |
| Operating weight | 4200 kg |
| Bucket capacity | 0.17 m³ |
| Engine model | Xincha 490 / Yanmar 4TNV88 |
| Engine power | 36.8 kW / 25.2 kW |
| Engine type | Water-cooled, 4 cylinders |
| Operating pressure | 22 Mpa |
Operating Parameters
| Parameter | Value |
|---|---|
| Max. digging radius | 4730 mm |
| Max. digging depth | 2545 mm |
| Max. digging height | 4450 mm |
| Max. dumping height | 3050 mm |
| Bucket digging force | 23.7 kN |
| Lever digging force | 21.6 kN |
Dimensions
| Parameter | Value |
|---|---|
| Overall length | 5500 mm |
| Width | 1750 mm |
| Height | 1861 mm |
| Ground clearance (bulldozer blade height) | 359 mm |
| Bulldozer blade depth | 268 mm |
| Track length | 2190 mm |
| Track width | 350 mm |
Standard equipment
-
Water-cooled 4-cylinder engine (Xincha or Yanmar)
-
Spacious 0.17 m³ bucket
-
Dual-speed chassis: 2.7 / 4.4 km/h
-
Stable work performance and high hydraulic pressure
-
High-class comfort for the operator
