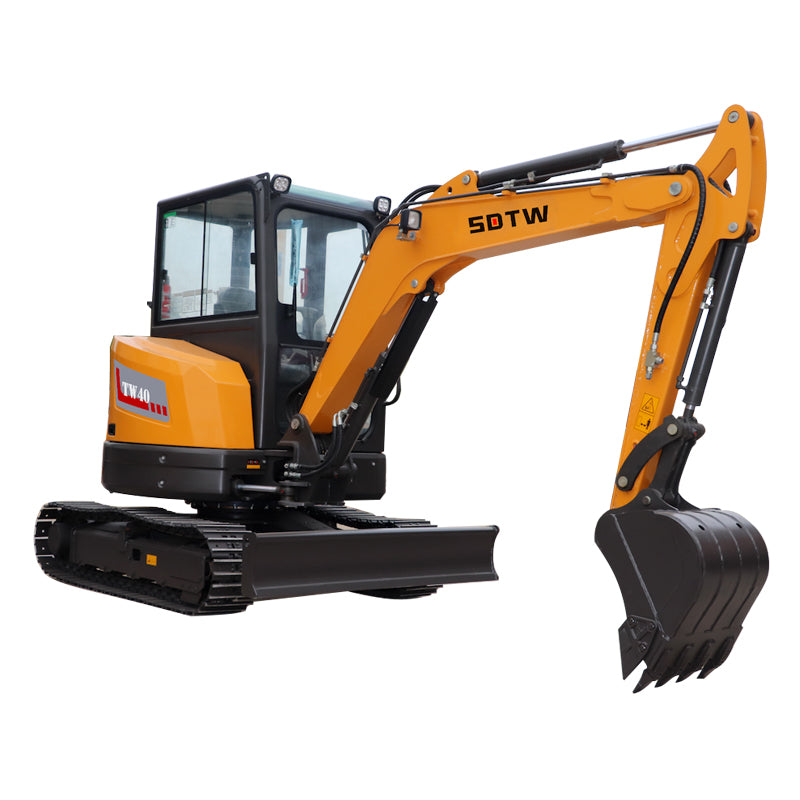

Crawler Excavator TW40 4.0T
EFFICIENT WORK WITH LOW COSTS
RELIABLE ENGINES
HIGH-CLASS PARTS
SUITABLE FOR DIFFICULT WORKING ENVIRONMENTS
MODERN CAB FOR COMFORT AND SAFETY
The TW40 4.0T is a larger-class crawler excavator designed for higher-intensity work in various fields: from agriculture to industrial facilities. Thanks to the reliable Kubota D1703 engine, reinforced cooling system, powerful hydraulics and comfortable cab, this model guarantees work efficiency, comfort and stability even in the most difficult conditions.
Main features
-
Kubota D1703 engine with 18.5 kW power and 97.4 Nm torque
-
Separate engine and cooling space with reinforced cooler – better cooling
-
Original hydraulic system parts – greater reliability and working accuracy
-
Dual fuel filter – increased engine protection
-
Korean pilot controls – smooth control
-
Comfortable cabin with wide visibility, excellent noise reduction
-
Additional hydraulic line – possibility to connect various attachments
Technical Specifications – TW40 4.0T
| Parameter | Meaning |
|---|---|
| Model | TW40 |
| Operating weight | 4000 kg |
| Bucket capacity | 0.12 m³ |
| Bucket width | 580mm |
| Dimensions (L x W x H) | 4915 x 1720 x 2525 mm |
| Ground clearance | 295 mm |
| Travel speed (high/low) | 4.4 / 2.4 km/h |
| Swing speed | up to 11 rpm |
| Slope ability | 58% |
| Ground pressure | 32 KPa |
| Boom length | 2535mm |
| Lever length | 1400mm |
| Track length (wheelbase) | 1670mm |
| Track width | 300mm |
| Track length (total) | 2154 mm |
| Track gap (track) | 1420mm |
| Fuel tank capacity | 42 L |
| Hydraulic oil capacity | 48.5 L |
| Engine oil capacity | 7 L |
| Carrying rollers (each side) | 1 |
| Support rollers (each side) | 4 |
| Tail swing radius | 860mm |
| Front swing radius | 2538 mm |
| Bulldozer blade height | 350mm |
Working Parameters
| Parameter | Meaning |
|---|---|
| Max. digging radius | 5480mm |
| Max. digging depth | 3208mm |
| Max. digging height | 4800mm |
| Max. dumping height | 3406 mm |
| Max. vertical digging depth | 3208mm |
Engine Specifications
| Model | Manufacturer | Power (kW/rpm) | Torque | Number of cylinders | Volume | Type |
|---|---|---|---|---|---|---|
| D1703 | Kubota | 18.5 / 2200 rpm | 97.4 Nm / 1500 rpm | 3 | 1.647 L | Water-cooled, 4-stroke, mechanical pump, atmospheric |
Standard equipment
-
Kubota D1703 engine
-
Korean pilot joystick controls
-
Reinforced cooling unit
-
Double fuel filter
-
Comfortable cab with wide field of vision
-
Standard bucket
-
Bulldozer blade
