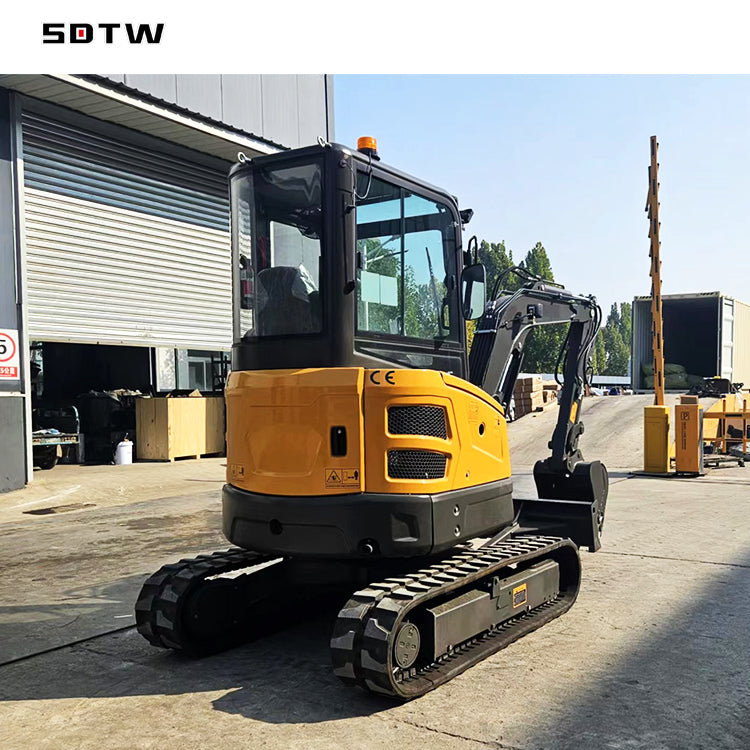

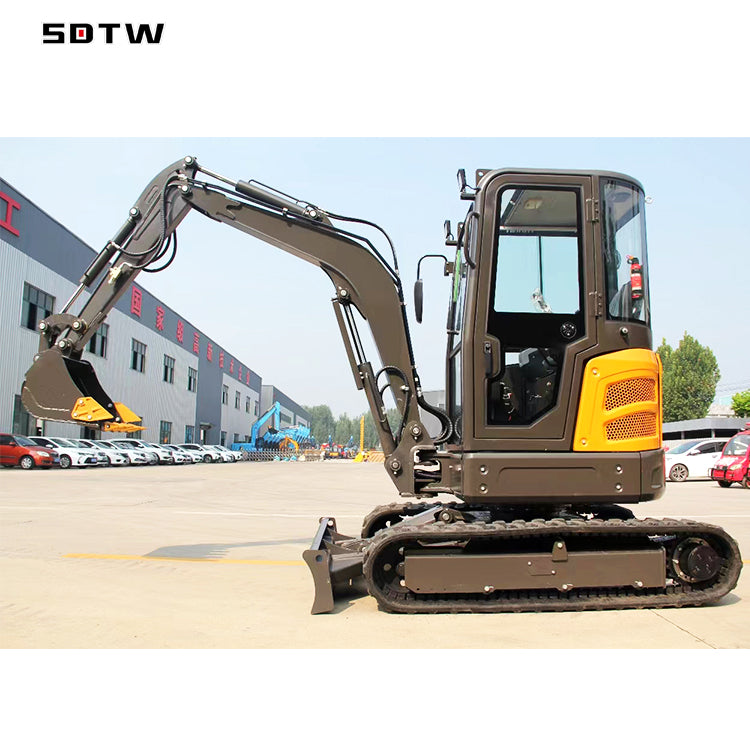

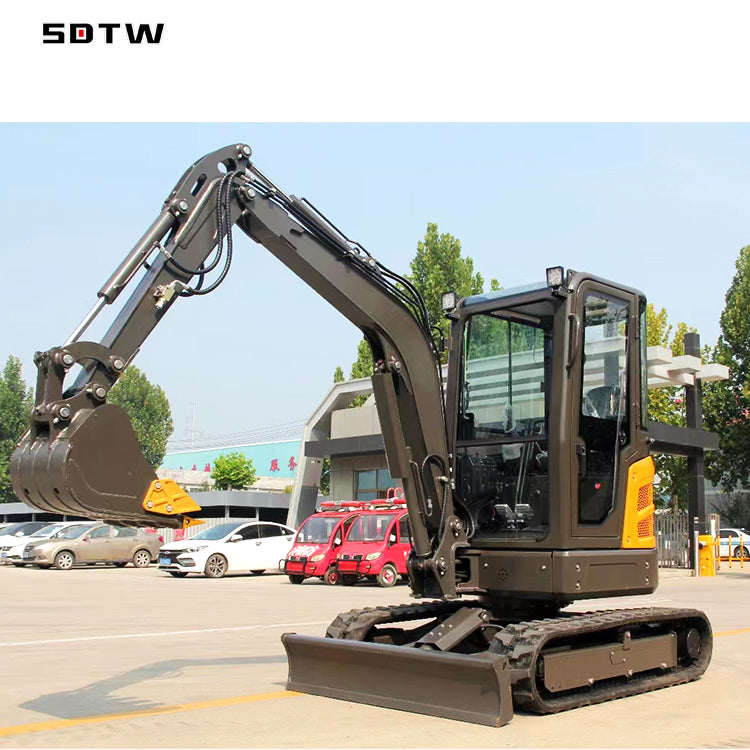

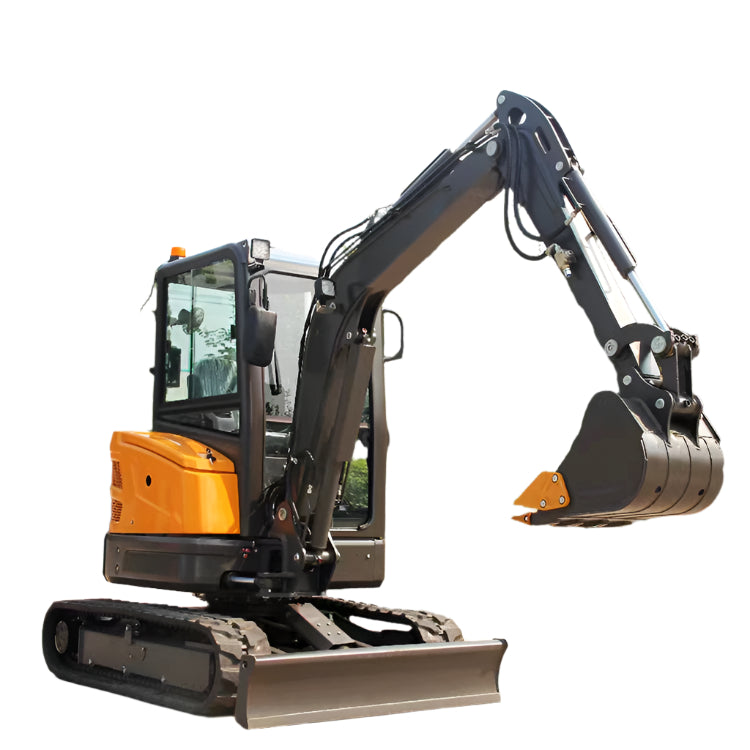

Crawler Excavator TW30 2.9T
EFFICIENT WORK WITH LOW EXPENSES
BEARING ENGINES
HIGH-QUALITY PARTS
SUITABLE FOR DEMANDING WORK ENVIRONMENTS
MODERN CABIN FOR COMFORT AND SAFETY
TW30 2.9T – an advanced tracked excavator equipped with a reliable Kubota D1105 engine. This model is designed for professional use, featuring high digging capacity and reliable operation even in the most challenging conditions. Due to its compact dimensions and high power ratio, the TW30 is an excellent choice for urban construction, agriculture, or infrastructure projects.
Main features
-
Kubota D1105 14 kW engine – reliability and low consumption
-
High bucket digging force – up to 23.5 kN
-
Compact design with excellent visibility area
-
Stable operation on slopes (58% gradient)
-
Robust tracked base and versatile use
Technical Specifications – TW30 2.9T
| Parameter | Value |
|---|---|
| Model | TW30 |
| Operating weight | 2900 kg |
| Bucket capacity | 0.1 m³ |
| Engine model | Kubota D1105 |
| Engine power | 14 kW / 2000 rpm |
| Engine type | In-line, water-cooled, mechanical pump |
| Displacement | 1.12 L |
| Number of cylinders | 3 |
Operating Parameters
| Parameter | Value |
|---|---|
| Max. digging radius | 4835 mm |
| Max. digging depth | 2830 mm |
| Max. digging height | 4427 mm |
| Max. dumping height | 3005 mm |
| Max. vertical digging depth | 2500 mm |
| Bucket digging force | 23.5 kN |
| Lever digging force | 14 kN |
Dimensions
| Parameter | Value |
|---|---|
| Overall length | 4195 mm |
| Width | 1550 mm |
| Height | 2480 mm |
| Ground clearance | 285 mm |
| Tail swing radius | 860 mm |
| Bulldozer blade height | 308 mm |
Standard equipment
-
Kubota engine with low vibration and noise
-
0.1 m³ bucket
-
Robust chassis with high ground clearance
-
Ergonomic control system
-
Reinforced hydraulic system
