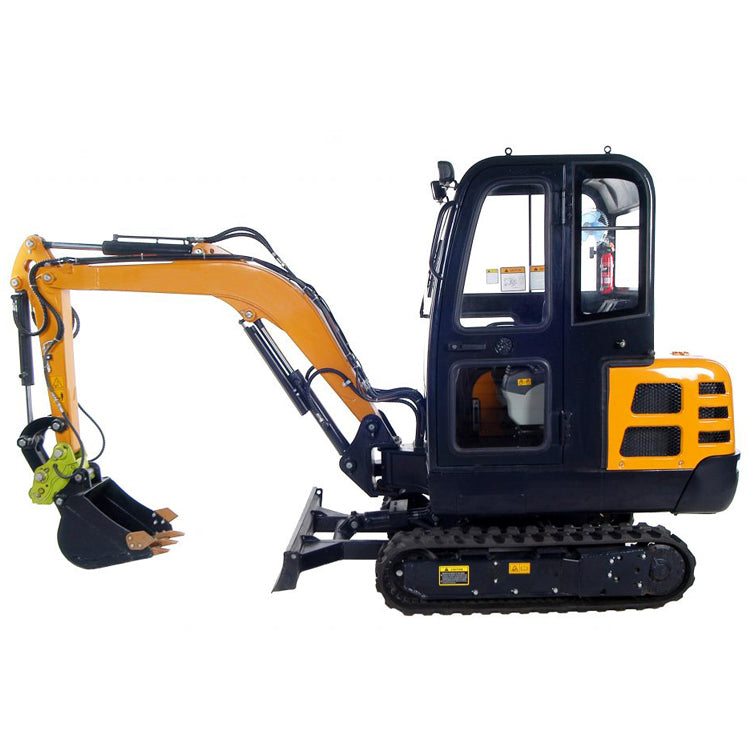

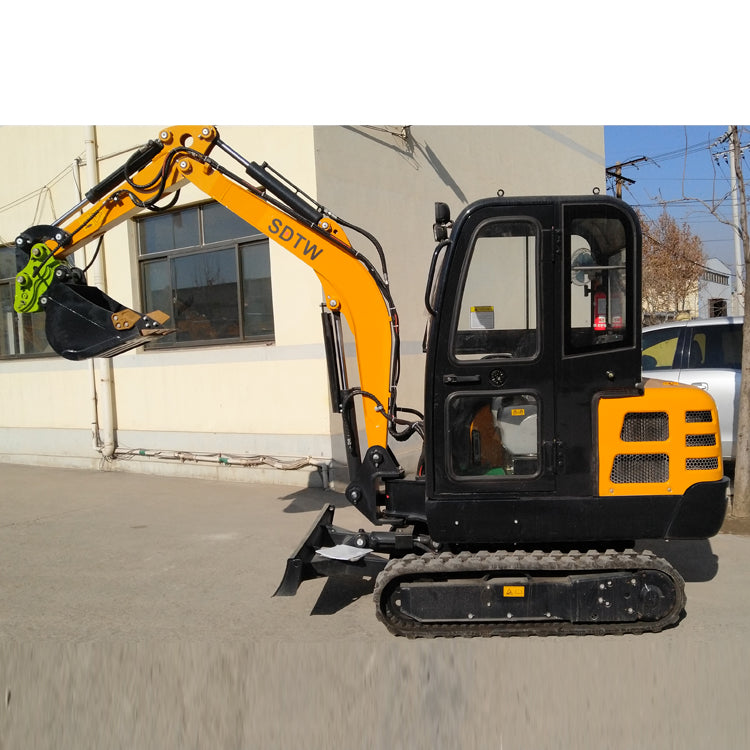

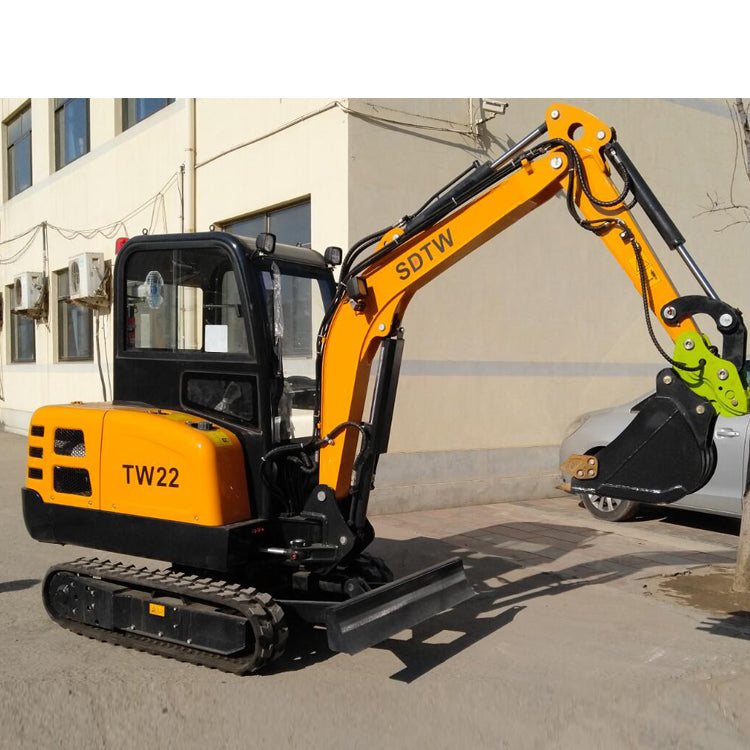

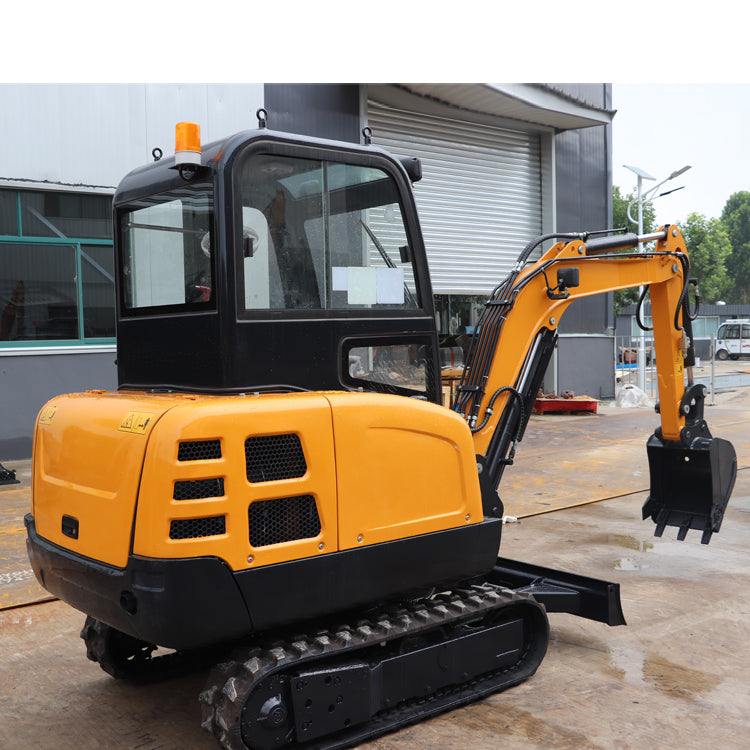

Crawler Excavator TW22 2.2T
EFFICIENT WORK WITH LOW EXPENSES
BEARING ENGINES
HIGH-QUALITY PARTS
SUITABLE FOR DEMANDING WORK ENVIRONMENTS
MODERN CABIN FOR COMFORT AND SAFETY
TW22 2.2T – is a reliable and powerful mini crawler excavator, designed for intensive work in construction, farming, or land maintenance. Available with Laidong or Kubota engines, it ensures low fuel consumption, quiet operation, and durability. Compact dimensions and efficient working features allow the TW22 excavator to be a versatile helper even in the most challenging working conditions.
Main Features
-
Powerful 3-cylinder Laidong (22.1 kW) or Kubota (14.2 kW) water-cooled engines
-
Sturdy chassis with wide 250 mm tracks
-
High working force – bucket digging force up to 11.5 kN
-
Compact size and maneuverability in confined spaces
-
Practical bulldozer blade with 310 mm lift and 240 mm digging height
Technical Specifications – TW22 2.2T
| Parameter | Value |
|---|---|
| Model | TW22 |
| Operating weight | 2200 kg |
| Bucket capacity | 0.1 m³ |
| Engine type | Water-cooled |
| Engine manufacturer / model | Laidong 3TE30 / Kubota D1105 |
| Power | 22.1 kW / 14.2 kW |
| Number of cylinders | 3 |
| Working pressure | 16 MPa |
| Rotation speed (revolutions per minute) | 12 r/min |
| Travel speed | 2.8 km/h |
Working Parameters
| Parameter | Value |
|---|---|
| Max. digging radius | 4350 mm |
| Max. digging depth | 2500 mm |
| Max. digging height | 3700 mm |
| Max. dumping height | 2330 mm |
| Bucket digging force | 11.5 kN |
| Arm digging force | 9.3 kN |
Dimensions
| Parameter | Value |
|---|---|
| Total length | 4170 mm |
| Width | 1300 mm |
| Height | 2270 mm |
| Track length | 1630 mm |
| Track width | 250 mm |
| Ground clearance | - |
| Bulldozer blade height | 310 mm |
| Bulldozer blade depth | 240 mm |
Standard Equipment
-
0.1 m³ digging bucket
-
Bulldozer blade
-
High-quality tracks
-
Optional Kubota or Laidong engine
-
Simple control and maintenance
