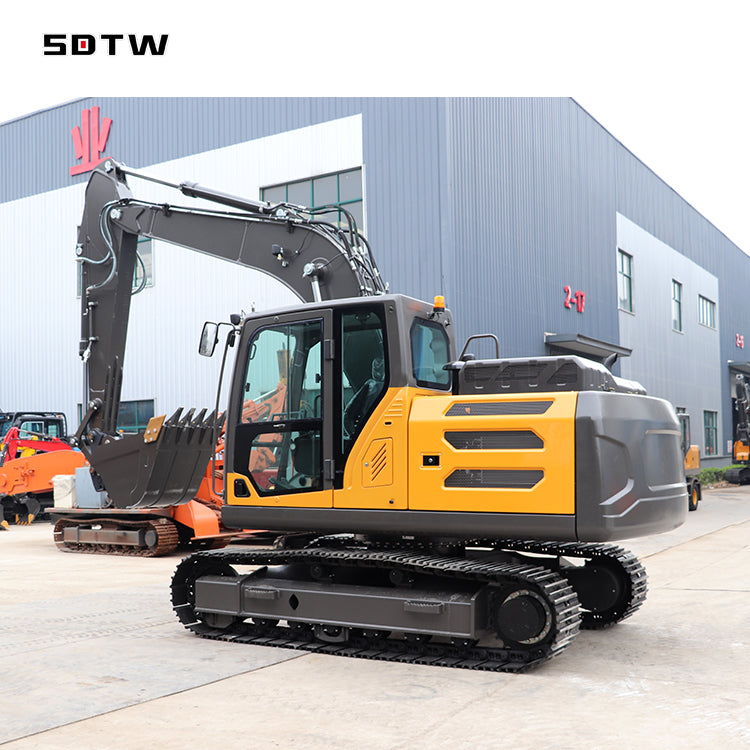

Crawler Excavator TW180 18T
EFFICIENT WORK WITH LOW COSTS
RELIABLE ENGINES
HIGH-CLASS PARTS
SUITABLE FOR DIFFICULT WORKING ENVIRONMENTS
MODERN CAB FOR COMFORT AND SAFETY
TW180 18T is a professional, heavy-duty crawler excavator equipped with a powerful Cummins QSF3.8 engine and the highest quality hydraulic system from Japan and Korea. Designed for intensive work, where not only power but also comfort are important.
Main features
-
Engine: Cummins QSF3.8 – 103 kW
-
Japanese Kawasaki pump, Korean Doosan valve
-
Sunjin swing motor and Doosan travel motor
-

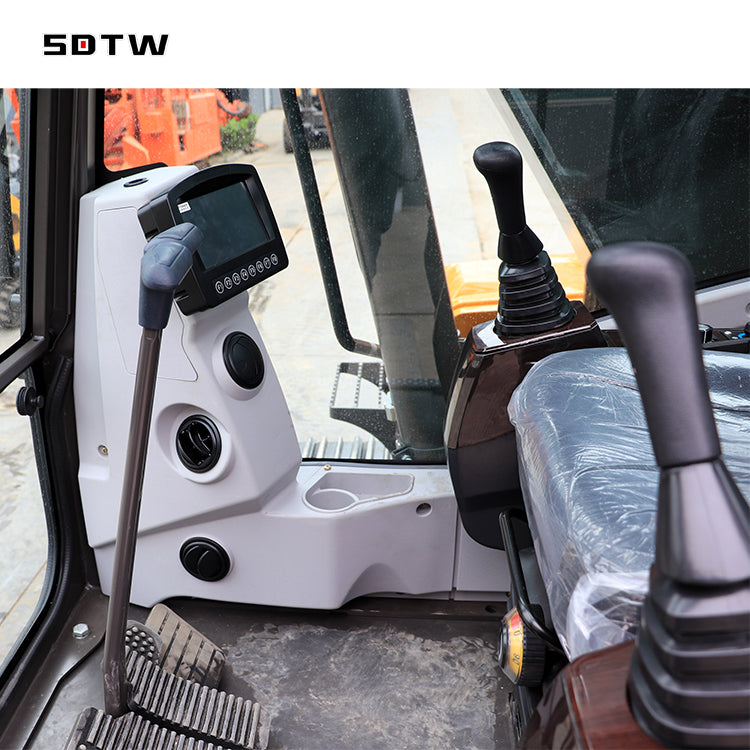

Comfortable A/C cabin with touch screen monitor and MP3 system
-
0.8–0.9 m³ bucket – for efficient loading and digging
-
Extremely robust design and high digging force – up to 98 kN
Technical Specifications – TW180 18T
| Parameter | Meaning |
|---|---|
| Model | TW180 |
| Operating weight | 18,000 kg |
| Bucket capacity | 0.8 – 0.9 m³ |
| Engine model | Cummins QSF3.8 103 kW / 2200 rpm |
| Number of cylinders | 4 |
| Driving speed | 2.8 – 4.2 km/h |
| Rotation speed | 12 rpm |
| Hill climbing ability | 30° |
| Bucket digging force | 98 kN |
| Lever digging force | 68 kN |
| Hydraulic pump type | Kawasaki KPM |
| Hydraulic valve | Doosan |
| Swing motor | Sunjin |
| Drive motor | Doosan |
| Working pressure | 32 MPa |
Dimensions
| Parameter | Meaning |
|---|---|
| Overall dimensions (L x W x H) | 8540 x 2720 x 2920 mm |
| Ground clearance (min.) | 480mm |
| Track width | 600mm |
| Chassis width | 2720mm |
| Tail turning radius | 2570mm |
Working Range
| Parameter | Meaning |
|---|---|
| Max. digging radius | 8985 mm |
| Max. digging depth | 5975 mm |
| Max. digging height | 9430mm |
| Max. dumping height | 6960mm |
Standard equipment
-
Cummins engine – turbo injection, low consumption
-
Kawasaki , Doosan and Sunjin hydraulic parts
-
A/C cabin with joystick control and English LCD display
-
Radio and MP3 support
-
Extended hydraulic lines for attachments
-
Designed for long-term and heavy-duty work
