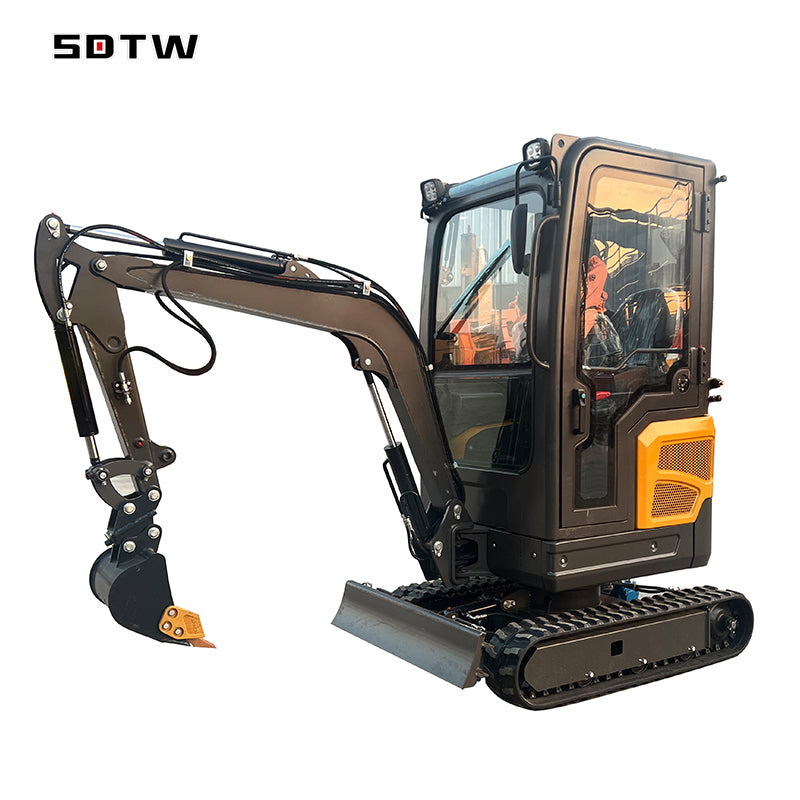

Crawler Excavator TW16A 1.6T
EFFICIENT WORK WITH LOW EXPENSES
BEARING ENGINES
HIGH-QUALITY PARTS
SUITABLE FOR DEMANDING WORK ENVIRONMENTS
MODERN CABIN FOR COMFORT AND SAFETY
TW16A is a compact and powerful 1.6 ton crawler excavator, perfectly suited for various tasks in gardens, farms, construction sites, and industry. With a reliable Kubota engine, high-quality hydraulic components, and a comfortable operator cabin, this model is a dependable choice for both professionals and private use.
Main features
-
Reliable Kubota D722 engine with 10.4 kW power
-
Exceptional cooling system – separate engine and cooling compartments
-
Reinforced cooler and high-efficiency fan
-
Dual fuel filter – better engine protection
-
Ergonomic cabin with wide visibility area
-
Korean pilot joystick controllers
-
Hydraulic lines for additional attachments
-
Used in gardening, farms, manufacturing, etc.
Technical Specifications – TW16A 1.6T
| Parameter | Value |
|---|---|
| Model | TW16A |
| Operating weight | 1600 kg |
| Bucket capacity | 0.03 m³ |
| Dimensions (L x W x H) | 3329 x 990 x 2267 mm |
| Minimum ground clearance | 153 mm |
| Travel speed (high / low) | 3.2 / 2.1 km/h |
| Swing speed | 12–13 rpm |
| Slope climbing ability | 58 % |
| Ground pressure | 23 KPa |
| Hydraulic system pressure | 20 MPa |
| Fuel tank capacity | 14.5 L |
| Hydraulic oil capacity | 1.5 L |
| Engine oil capacity | 3.2 L |
| Track rollers (on each side) | 1 |
| Carrier rollers (on each side) | 3 |
| Track width | 200 mm |
| Track length on ground (wheelbase) | 1190 mm |
| Track gauge (track width) | 790 mm (expandable to 1100 mm) |
| Bulldozer blade height | 210 mm |
Operating Parameters
| Parameter | Value |
|---|---|
| Max. digging radius | 3529 mm |
| Max. digging depth | 2017 mm |
| Max. digging height | 2955 mm |
| Max. dumping height | 2077 mm |
| Max. vertical digging depth | 1610 mm |
Engine Specifications
| Parameter | Value |
|---|---|
| Model | Kubota D722 |
| Power | 10.4 kW / 2500 rpm |
| Maximum torque | 45 Nm / 2500 rpm |
| Type | 3-cylinder, in-line, water-cooled, 4-stroke, mechanical pump |
| Displacement | 0.719 L |
Standard equipment
-
Kubota D722 engine
-
Korean pilot joystick controllers
-
Comfortable cabin with wide visibility
-
Dual fuel filter
-
Additional hydraulic lines
-
Bulldozer blade
-
Standard digging bucket
