Crawler Excavator TW07 0.7T
EFFICIENT WORK WITH LOW EXPENSES
BEARING ENGINES
HIGH-QUALITY PARTS
SUITABLE FOR DEMANDING WORK ENVIRONMENTS
MODERN CABIN FOR COMFORT AND SAFETY

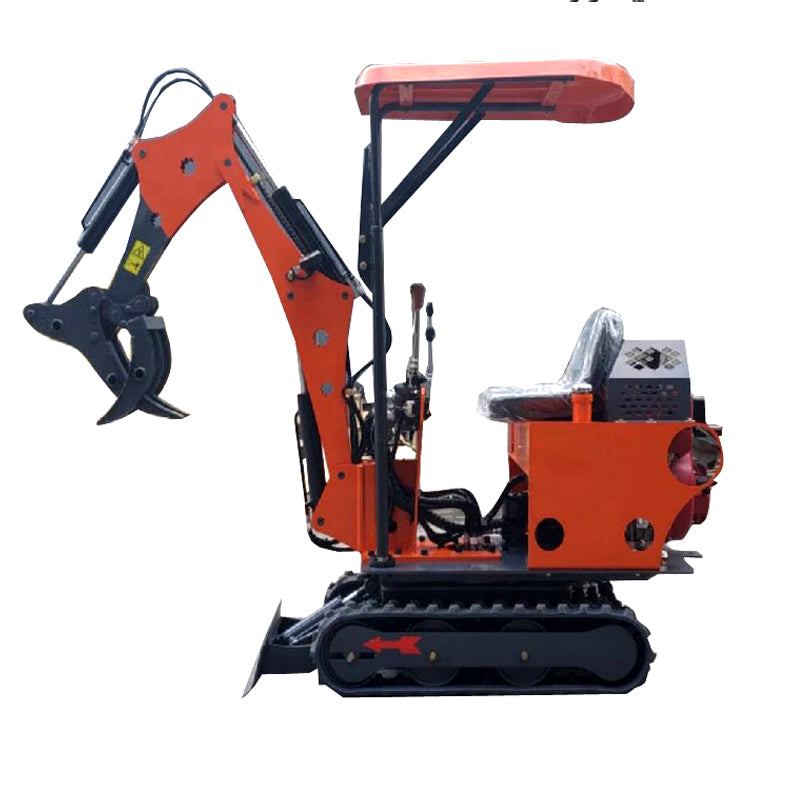

TW08 0.7T – is an extremely compact and economical tracked excavator, perfectly suited for small digging, gardening, landscaping, or farm work. Although it weighs only 700 kg, this model features a good balance of maneuverability, power, and fuel consumption. Due to its very narrow width, it easily passes through gates, doors, or narrow passages.
Main features
-
Koop or Briggs & Stratton engine with 7.5 kW power
-
Compact size – only 720 mm wide
-
0.02 m³ standard bucket for small jobs
-
Simple, reliable drive system with gear pump
-
Rubber tracks – surface protection
-
Bulldozer blade – for additional earth leveling work
Technical Specifications – TW08 0.7T
| Parameter | Value |
|---|---|
| Model | TW08 |
| Operating weight | 700 kg |
| Bucket capacity | 0.02 m³ |
| Dimensions (L x W x H) | 2480 x 720 x 2000 mm |
| Travel speed | 2 km/h |
| Swing speed | 11 r/min |
| Bucket digging force | 7.5 kN |
| Boom digging force | 5.0 kN |
| Operating pressure | 16 Mpa |
| Track length | 1140 mm |
| Track width | 150 mm |
| Fuel pump | Gear pump |
Operating Parameters
| Parameter | Value |
|---|---|
| Max. digging radius | 2460 mm |
| Max. digging depth | 1220 mm |
| Max. digging height | 2400 mm |
| Max. dumping height | 1650 mm |
| Bulldozer blade height | 125 mm |
| Bulldozer blade depth | 210 mm |
Engine Specifications
| Manufacturer | Model | Power (kW) | Number of cylinders | Cooling |
|---|---|---|---|---|
| Koop / Briggs & Stratton | 192FAM | 7.5 | 1 | Air-cooled |
Standard equipment
-
Koop or B&S engine
-
Gear hydraulic pump
-
Rubber tracks
-
Standard small volume digging bucket
-
Bulldozer blade
-
Compact body for maneuvering in narrow spaces
