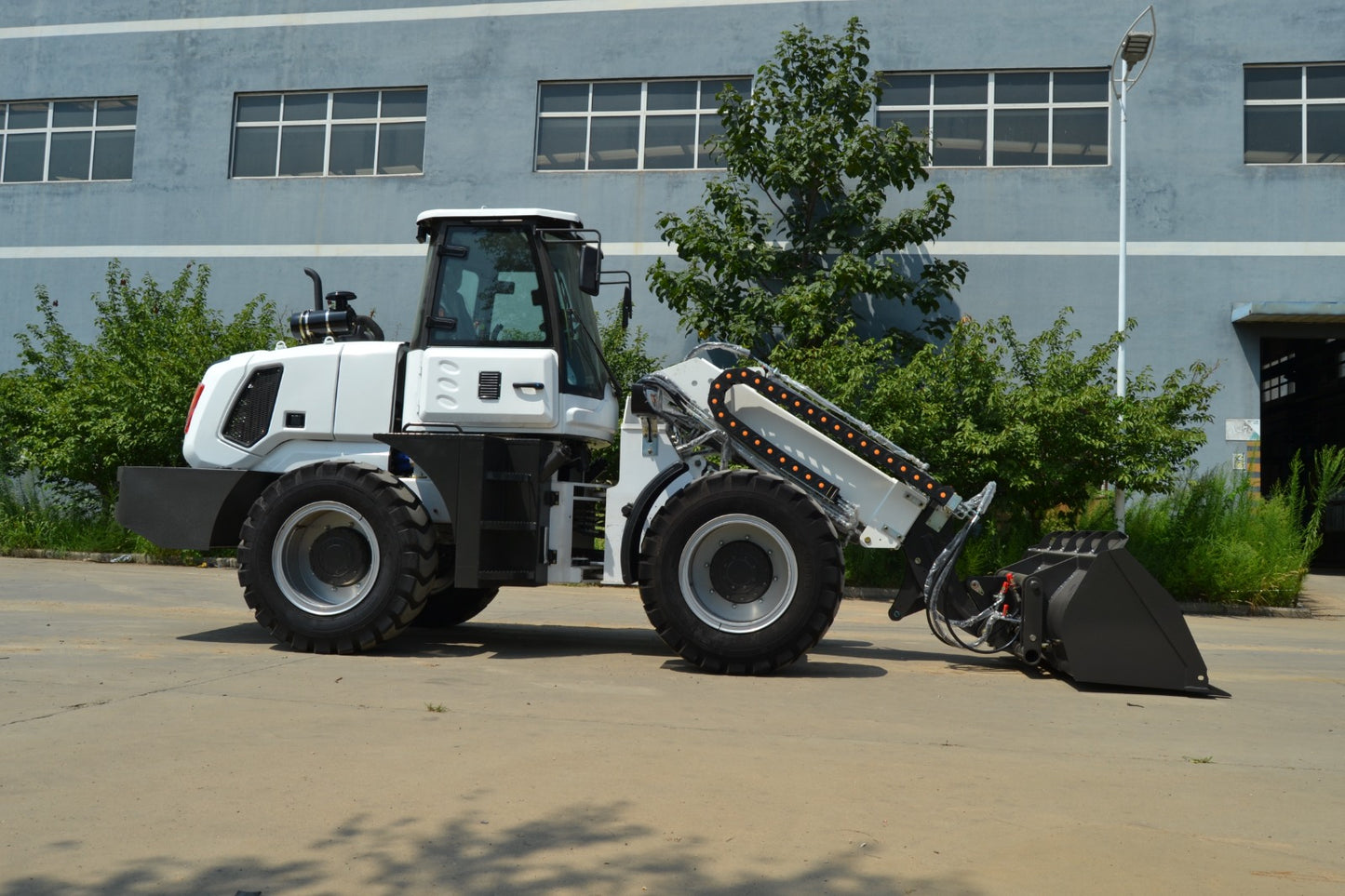

Telescopic Wheel Loader TL2500 6.0T
EFFICIENT WORK WITH LOW EXPENSES
BEARING ENGINES
HIGH-QUALITY PARTS
SUITABLE FOR DEMANDING WORK ENVIRONMENTS
MODERN CABIN FOR COMFORT AND SAFETY
TL2500 is a telescopic wheel loader designed for efficient handling of heavy loads and operation at greater lifting heights. With a dump height of up to 4.4 m and a robust design, the TL2500 is ideal for construction, agriculture, and warehousing. The loader is equipped with a Yunnei YN38GBZ engine and can also be equipped with engines meeting EURO5 or EPA4 standards.
Key features
-
Lifting capacity – 2.5 tonnes (with bucket or attachment) – sufficient for both construction and logistics
-
Dump height of up to 4.4 m – the telescopic boom enables greater reach height
-
Yunnei YN38GBZ engine – 76 kW, 4-cylinder, water-cooled diesel engine
-
Automatic transmission + ISUZU axles – reliability and smooth operation
-
Hydraulic quick coupling system + mechanical joystick control – convenient attachment changes
Technical Specifications – TL2500
| Parameter | Value |
|---|---|
| Operating weight | 6000 kg |
| Dimensions (L x W x H) | 6500 x 2000 x 2860 mm |
| Wheelbase | 2550 mm |
| Track width | 1600 mm |
| Travel speed | up to 35–38 km/h (estimated) |
Operating Parameters
| Parameter | Value |
|---|---|
| Lifting capacity | 2500 kg |
| Bucket capacity | 1.2 m³ |
| Bucket type | Reinforced with bolted teeth |
| Dump height (max) | 4400 mm |
| Dump height (min) | 3400 mm |
| Transmission | Gearbox + hydraulic converter + drive shaft |
| Axles | ISUZU reduction axles |
Engine and Controls
| Parameter | Value |
|---|---|
| Engine model | Yunnei YN38GBZ |
| Power | 76 kW |
| Number of cylinders | 4 |
| Fuel type | Diesel |
| Cooling type | Water-cooled |
| Alternative engines | EURO5 YUCHAI, EPA4 KOHLER / CUMMINS |
| Controls | Mechanical pilot joystick |
| Steering system | Hydraulic, articulated |
| Quick coupling system | Available |
Brakes and Tires
| Parameter | Value |
|---|---|
| Service brakes | Disc brakes (all four wheels) |
| Parking brake | Disc |
| Tire model | 16/70-24 (410 mm wide, 1175 mm diameter) |
| Alternative tires | |
| Hydraulic system pressure | 20 MPa |
