Telescopic Wheel Loader TL3000 7.0T
EFFICIENT WORK WITH LOW EXPENSES
BEARING ENGINES
HIGH-QUALITY PARTS
SUITABLE FOR DEMANDING WORK ENVIRONMENTS
MODERN CABIN FOR COMFORT AND SAFETY

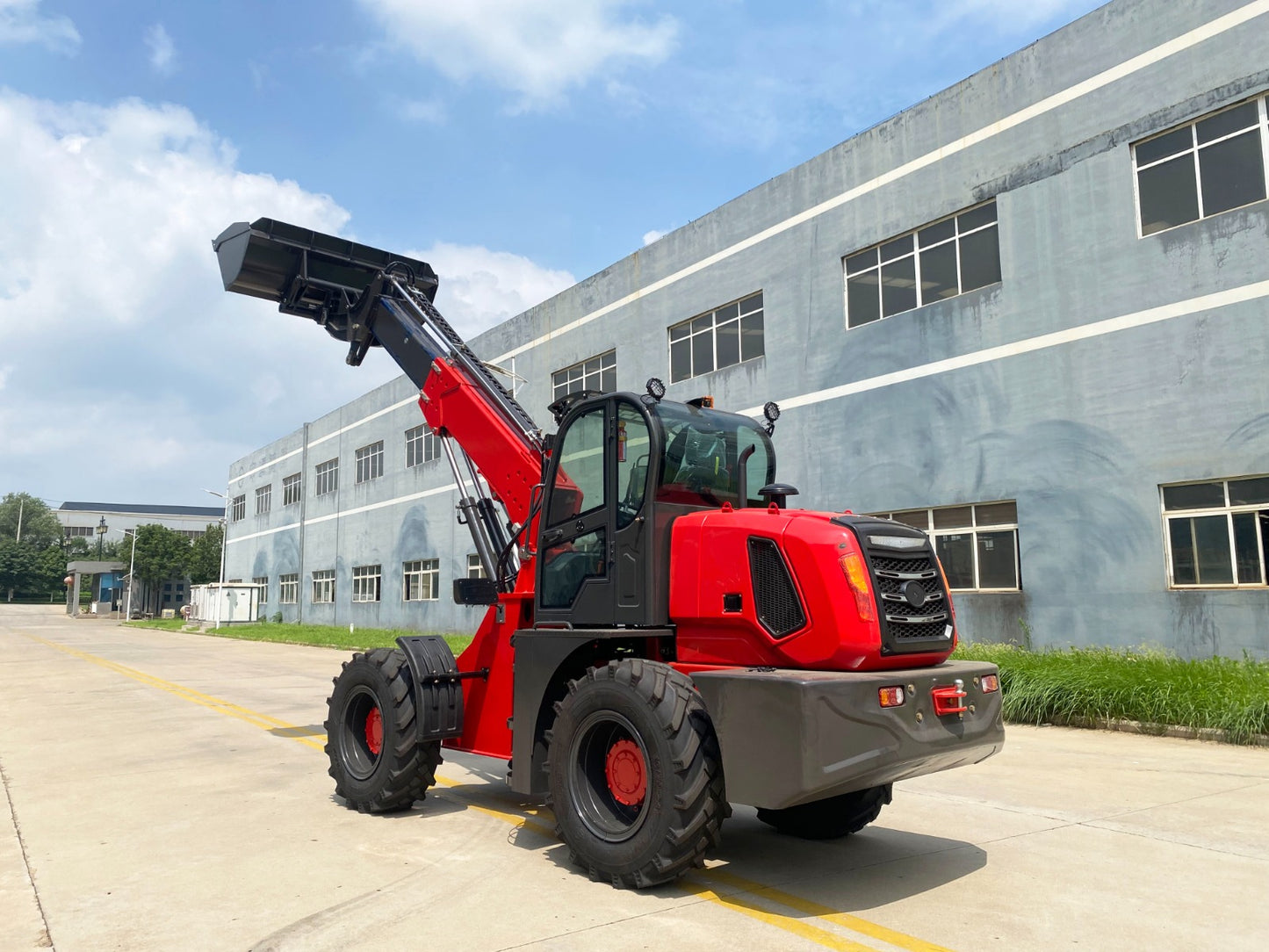

TL3000 is a telescopic wheel loader designed for efficient handling of heavy loads and greater lifting heights. With a dumping height of up to 5.0 m and a robust construction, the TL3000 is ideal for construction, agriculture, and warehousing. The loader is equipped with a YUCHAI YCD4J22T-115 diesel engine and can also be equipped with engines meeting EURO5 or EPA4 standards.
Key features
-
Lifting capacity – 3.0 tonnes (with bucket or attachment) – sufficient for both construction and logistics
-
Dumping height up to 5.0 m – the telescopic boom enables greater reach height
-
YUCHAI YCD4J22T-115 engine – 85 kW, 4 cylinders, water-cooled diesel engine
-
Automatic transmission + ISUZU axles – reliability and smooth operation
-
Hydraulic quick coupling system + mechanical joystick control – convenient attachment changes
Technical Specifications – TL1500
| Parameter | Value |
|---|---|
| Operating weight | 7000 kg |
| Dimensions (L x W x H) | 7200 x 2200 x 3000 mm |
| Wheelbase | 2800 mm |
| Track width | 1800 mm |
| Travel speed | up to 35–38 km/h (estimated) |
Operating Parameters
| Parameter | Value |
|---|---|
| Lifting capacity | 3000 kg |
| Bucket capacity | 1.5 m³ |
| Bucket type | Reinforced with bolt-on teeth |
| Dumping height (max) | 5000 mm |
| Dumping height (min) | 3800 mm |
| Transmission | Transmission + hydraulic converter + drive shaft |
| Axles | ISUZU reduction axles |
Engine and Controls
| Parameter | Value |
|---|---|
| Engine model | YUCHAI YCD4J22T-115 |
| Power | 85 kW |
| Number of cylinders | 4 |
| Fuel type | Diesel |
| Cooling type | Water-cooled |
| Alternative engines | EURO5 YUCHAI, EPA4 KOHLER / CUMMINS |
| Controls | Mechanical pilot joystick |
| Steering system | Hydraulic, articulated |
| Quick coupling system | Available |
Brakes and Tires
| Parameter | Value |
|---|---|
| Service brakes | Disc brakes (all four wheels) |
| Parking brake | Disc |
| Tire model | 16\70-24 (410 mm wide, 1175 mm diameter) |
| Alternative tires | 17.5–25 (440 mm wide, 1280 mm diameter) |
| Hydraulic system pressure | 20 MPa |
