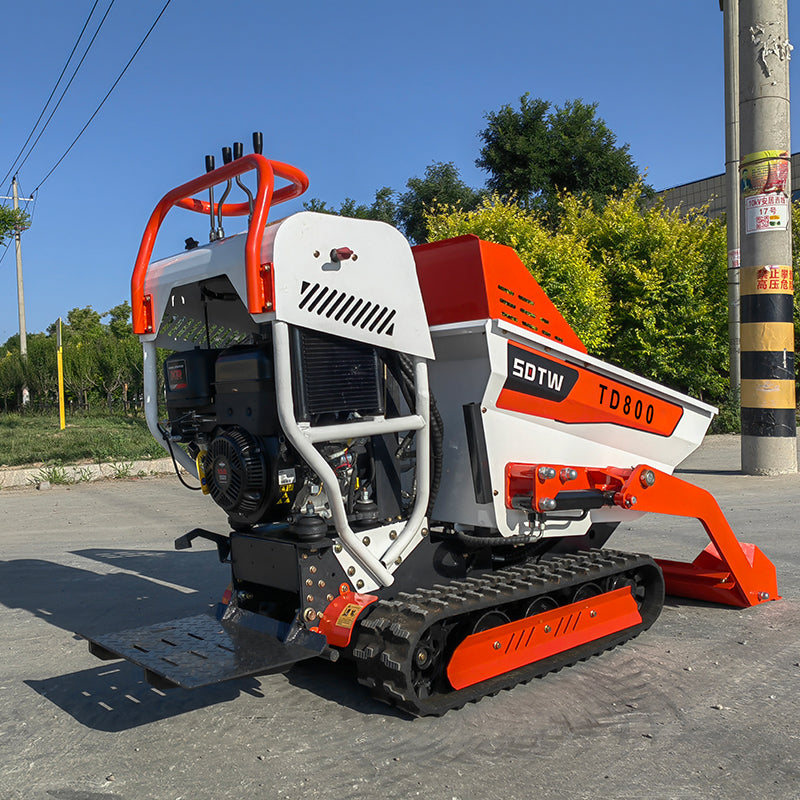

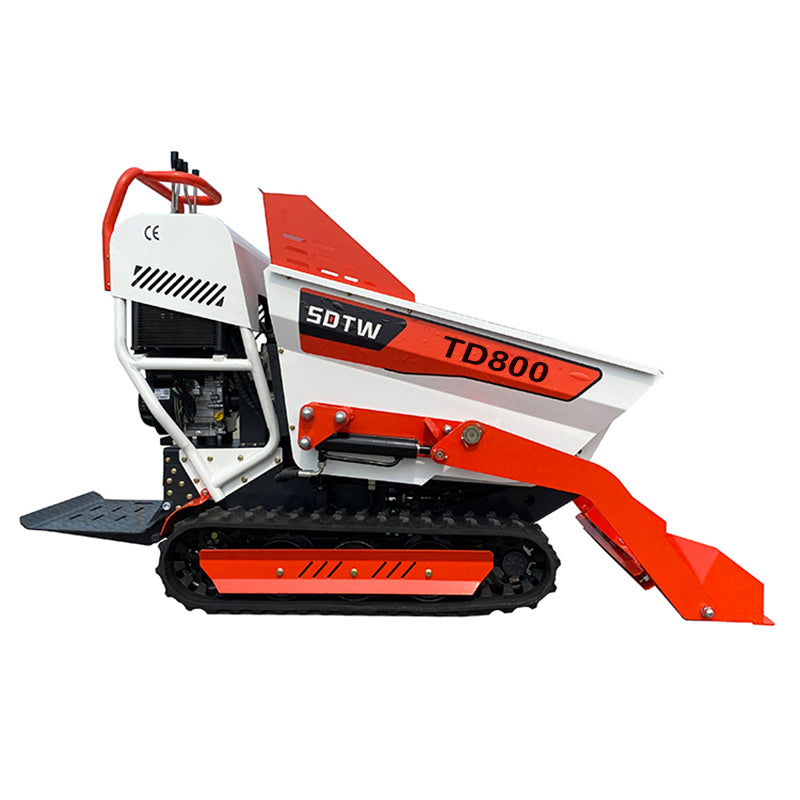

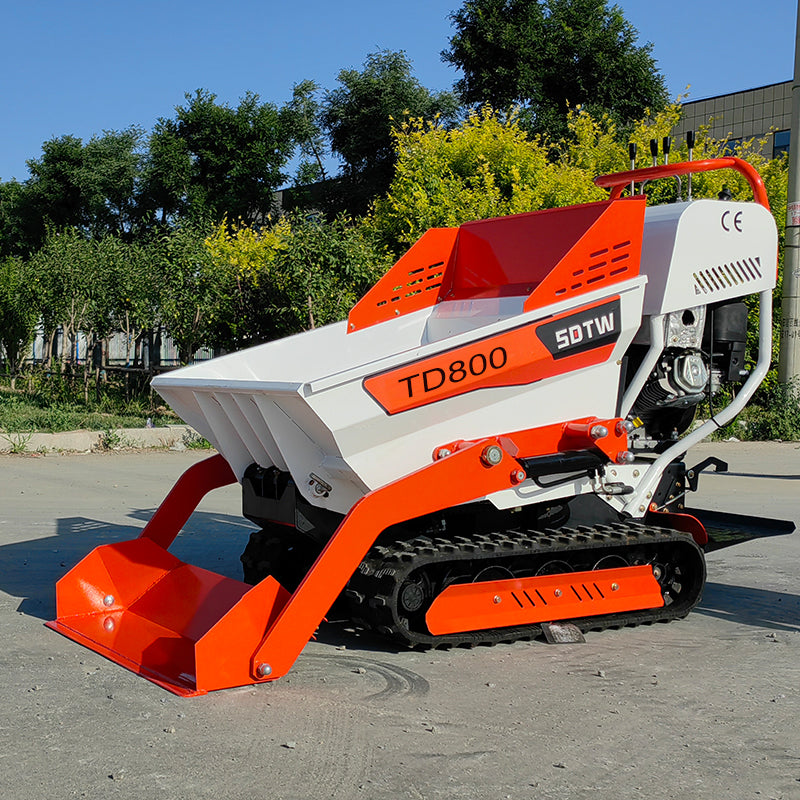

Mini Crawler Dump Truck TD800 0.4T
€4.400,00 EUR
The item is delivered by order
EFFICIENT WORK WITH LOW EXPENSES
BEARING ENGINES
HIGH-QUALITY PARTS
SUITABLE FOR DEMANDING WORK ENVIRONMENTS
MODERN CABIN FOR COMFORT AND SAFETY
TD800 – powerful mini crawler dumper, designed for efficient cargo transport in challenging working conditions. Due to its compact size, 800 kg carrying capacity, and ability to climb 30° slopes, this model is ideal for both construction sites and farm work.
Main Features
-
Maximum carrying capacity: 800 kg
-
Engine: Briggs & Stratton, 420 cc
-
Travel speed up to 4 km/h
-

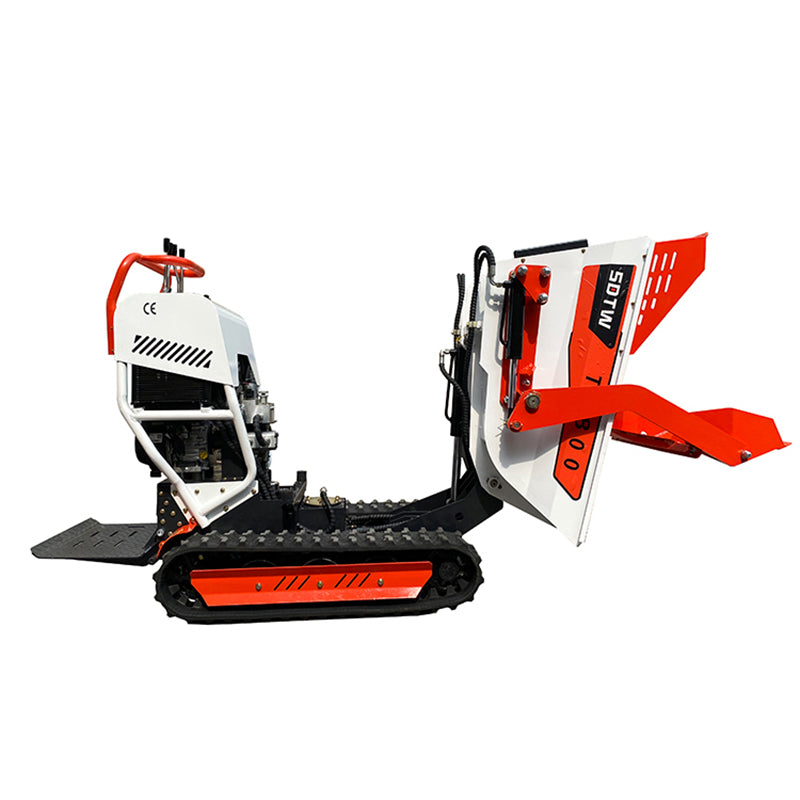

Dumping angle: 100°
-

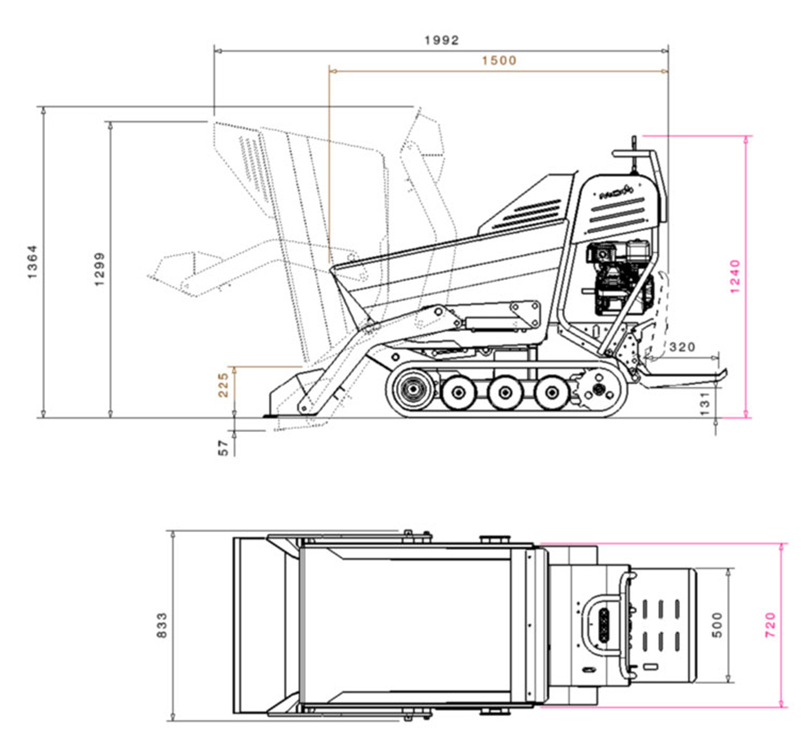

Compact size: 1500 x 830 x 1240 mm
-
Sturdy crawler chassis and 30° slope climbing ability
Technical Specifications
| Parameter | Value |
|---|---|
| Engine | Briggs & Stratton |
| Engine type | 1 cylinder, 4-stroke, air-cooled |
| Displacement | 420 cc |
| Rated power | 10.07 kW / 3600 rpm |
| Fuel type | 92 # petrol |
| Fuel consumption | ≤ 0.395 g/kW·h |
| Fuel tank capacity | 3.6 L |
| Engine oil capacity | 0.6 L |
| Hydraulic oil type | 46# Anti-wear |
| Hydraulic oil capacity | 15 L |
| Dumping system | Hydraulic |
| Dumping angle | 100° |
Dimensions and Working Data
| Parameter | Value |
|---|---|
| Total weight | 430 kg |
| Max. carrying capacity | 800 kg |
| Body dimensions | 1500 × 830 × 1240 mm |
| Load box volume | 300 dm³ |
| Minimum turning radius | 1.15 m |
| Travel speed | 4 km/h |
| Track width | 520 mm |
| Minimum ground clearance | 100 mm |
| Slope climbing angle | 30° |
